Vega 2.
Going to be tubbed and sub framed.
|
|
|
Gathering parts for new frame.
2x3 box for front rails--pre formed for rear--ladder bar and coil overs. |
Tires that will go under the new frame.
They are Mickey Thompson Sportsman --18 1/2 x 31 x 15. They are slightly used but also a little cheaper. That's me - cheap - if I can still get quality.. |
|
|
|
Driver side Frame rail.
Welded to front subframe and floor pans. |
Starting tire fit.
Just looking at this point. Looking to see how much to change wheel well opening.
|
|
|
|
Wheel well size?
This is the factory size wheel well opening, but it is too small for the tires. Looking to see how much they need to be enlarged. |
Step # 2.
Trial fit shows that it must be 4 inches wider . I want to keep the original shape.
|
|
|
|

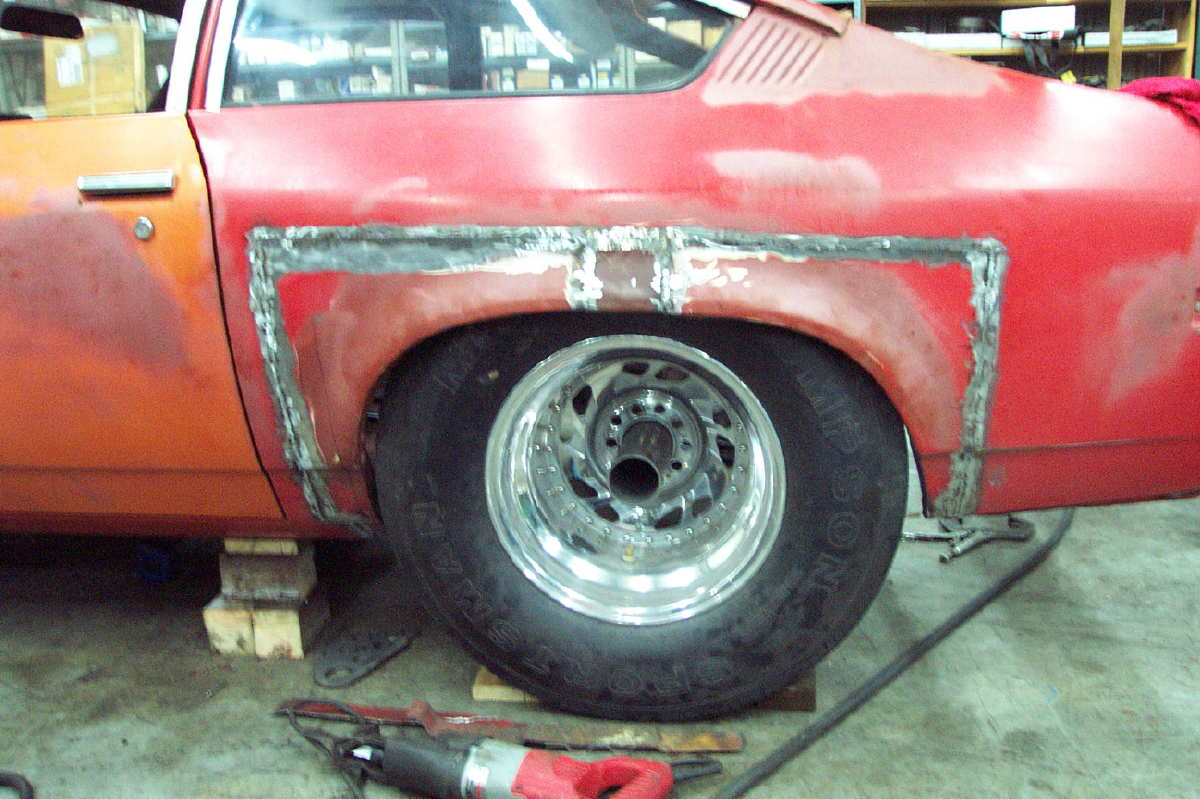

Welded in..
The part that was removed was cut in the center and each part was moved 2 inches. This left the axle in the same position and kept the shape as it was. A 4 inch section was added in the center.. |
