My Nova 3 Still on installing the 406. This is hard work for an "OLD" Coot!!! I had a lot of help from my friend Doug Forschner. Doug and I worked togather at G.E.Co. We are both retired now. Don't know how I could have done it without him. Thanks Doug!!!!!!!! |
|
|
New Oil Cooler. This is a new honeycomb cooler that is supposed to be a lot more efficiant than the tube type. This may be used for crankcase cooling.. |
 |
| Trans cooler lines I placed the trans lines through the frame part of engine mount. It is insulated with heavy rubber hose at all contact points. |
 |
|
The 406 going in!! This is what I was waiting for--dropping it in the Bay. The heads are #186 iron Chevy castings with 2.02 x 1.60 stainless Manley valves, pocket ported by me, screw-in studs and guide plates, new Z-28 springs and 67cc chambers. |
 |
|
Ready for transplant. Up on stands getting ready to drop the 406 transplant in. |
 |
|
The other side while waiting for the transplant. This is in my back driveway. |
 |
|

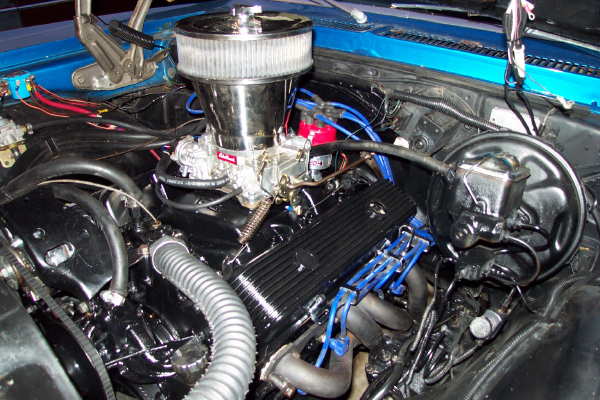

Driver side Installed. Here is the completed job. Now if it will "RUN". |
 |
|
Passenger side Installed. Just admiring the other side. Sure glad that is complete..
|
 |
